6500 / KNIFE GATE VALVE - Compañía de válvulas Faf

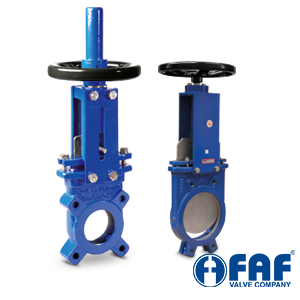

6500 / KNIFE GATE VALVE
PRODUCTION STANDARDS
DN50 → DN600
PN 10
Connection
EN 1092-2 / ISO 7005-2 – PN10
Face to Face
EN 558 Series
Marking
EN 19
Tests
EN 12266-1
Corrosion
Protection
Electrostatic Powder Epoxy
Features
Uni-directional wafer type knife gate valve.
Can be installed both between two flanges, or, using an opposing flange, at the end of a pipeline.
Bonnet sealing gasket can be replaced on the line.
Suitable for actuated operation with additional top flange.
Knife shaped wedge design, cutting the fiber fluids, makes it suitable to work in wastewater treatment plants, textile and food industries.
EPDM rubber gasket seat is inserted inside the body cavity.
With mechanical position indicator of the knife.
Stem and gate connection is secured with self-locking nuts.
Gate, stem, bolts and nuts of acid-resistant stainless steel.
Slim design and low weight.
Various seal and packing materials available.
Manual (handwheel, chainwheel, lever and bevel gear), pneumatic (single and double-acting), electric and hydraulic actuation options available.
Due to design, operating pressure is lower than nominal pressure for larger diameters. Please ask for technical support.
Temperature
+50 °C (NBR)
Scope of Application
Slurry fluids
Waste, hot, cold water
Installation in plants
Water treatment plants
Pumping stations
Tanks
Seawater applications
Power plants (cooling water pipelines)
Industrial applications
