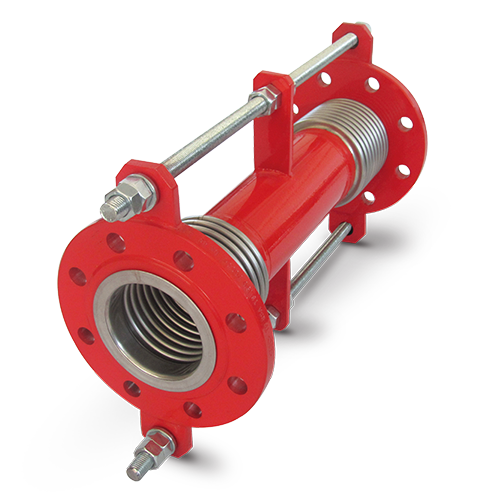

5400 / DILATATION EXPANSION JOINT
PRODUCTION STANDARDS
DN32 → DN250
PN 16
Design
DIN 30681
Connection
Flanged End EN 1092-1 / ISO 7005-1
Welding End EN 12627
Face to Face
DIN 30681
Marking
EN 19 / DIN 30681
Tests
DIN 30681
Corrosion
Protection
Electrostatic Epoxy
Features
Consisting of two bellows are separated by an intermediate pipeline universal compensator.
Used for absorbing large lateral movements.
In general, after crossing points on the basis of buildings with different floor exercises and building collapses it is used to prevent damage to the existing pipeline.
The expansion joint allows large lateral movement in all planes, this movement can be increased by increasing the length of the central pipe.
Can take greater axial, lateral and angular movements than a single tied expansion joint.
If the universal tied expansion joint is designed with only two tie rods, equally spaced @ 180 degree, the expansion joint will take both lateral and angular movements.
To restrict the angular movement, four tie rods are provided at in interval of 90 degrees, around the circumference of the expansion joint.
If more than two tie rods are used then this kind of expansion joint will only take lateral movement.
Generally used in transition points of the buildings which has different base levels, in ground movements and to avoid pipeline damages after building collapses.
Usually are provided with control rods to distribute the movement equally between the two bellows.
Control rods are not designed to withstand pressure thrust.
Can be manufactured in flanged type (FAF5410) and welding netype (FAF5420)
