2140 FORGED GLOBE VALVE - Compañía de válvulas Faf

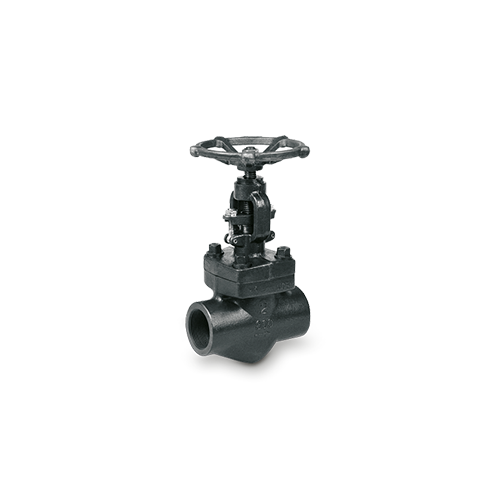

2140 FORGED GLOBE VALVE
PRODUCTION STANDARDS
DN15 → DN50 CLASS 800/1500
Design
BS5351/ ASME B16.34
Connection
ASME B1.20.1 / ASME B16.11 / ASME B16.25
Pressure Test
API 598
Marking
MSS SP-25
Corrosion Protection
Industrial Epoxy
Features
Designed and manufactured according to ANSI standards.
It has cast steel body; stem, disc and sealing seats are manufactured from stainless steel
According to its design feature; head loss is higher compared to other valve types due to the flow travelling inside the body and flow section is narrower
Suitable for hot water, steam and industrial applications
Manufactured from forged steel material and has a high pressure resistance
No maintenance needed, can be operated with lower torque ratings.
Valves can be equipped with a variety of manual gear or electric motor actuators. Generally, all pressure must be relieved from both sides of the valve before the actuator is removed.
Zero stem leakage eliminates media loss and satisfies environmental regulations.
Effective for energy savings. Energy loss due to leakage is controlled, helping to prevent global warming and protecting the environment.
